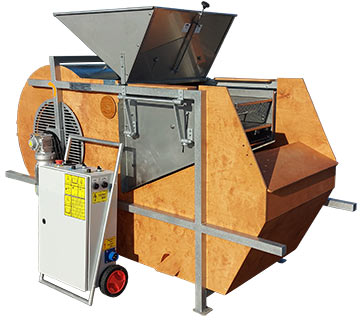

Due to its simple structure the S-800 Seed cleaning machine is the base machine for cleaning and producing grains, sowing seeds, field crops, forage crops, vegetable seeds, herb seeds, organic products and other type of seeds. It is suitable for pre-cleaning, fine cleaning and grading of different seed types (wheat, spelt, barley, rye, oats, triticale, sunflower, corn, soybeans, peas, beans, pumpkin seeds, lentils, rice, hemp seeds, grape seeds, millet, linseed, alfalfa, clovers, poppy seeds, etc).
Designed for reliability and efficiency
- It can be operated with more than 50 different sizes of perforated sieves (round holes and oblong holes) for professional cleaning results
- All machines can go on the market only after a particular quality control ensuring high quality and long life
- Extremely low power consumption, can be operated without downtime
- Simple, transparent and easy interior cleaning and status checking
- The sieves are quick, easy to replace
- Requires minimal maintenance
- Its cleaning performance with wheat is 800-1500kg per hour!
- CE classification
Specifications
Weight: 115 kg
Propulsion engine: 230V, 0.75 KW
Dimensions (length x width x height): 2160x930x1530 mm
Carcase:
Combination of sturdy, welded steel frame with powder paint and laminated birch.
The birch plywood:
– is moisture and insect resistant
– makes the machine long lasting as the laminated birch tolerates the vibration of the sieves, it has low resonance and thus provide a better working environment.
Its driving mechanism:
It provides simple, stress-free performance for a seed cleaner machine and the steel carcase.
It is mounted with heavy duty bearings.
How it works?
Ventilator’s fan:
It works efficiently at low noise levels. It provides a full airing of the seeds to be cleaned. It removes the dust, husks, light seeds and other light-density materials. It provides high efficiency for cleaning all types of grain and seed. The airflow can be adjusted with four shutters. It’s lightweight and easy to operate.
Cleaner’s operations:
The machine cleans and classifies the seeds according to weight and size. Due to its precisely tuned stroke and engine speed the cleaning effect of the sieves is maximally ensured. Among the three sieves in the cabinet of sieve, the tilt of the upper and lower sieves can be adjusted in 2 grades. The replacement of the sieves can be done quickly and easily within a short time. The basic machine is equipped with 3 pieces of sieves ready to operate, with frames.
Perforated sieves you can choose for the S-800 Seed cleaning machine
Rv – round holes of the sieve
Diameter of the round holes Ø (mm): 1,0 1,2 1,5 1,8 2,0 2,2 2,5 2,8 3,0 3,5 4,0 4,5 5,0 5,5 6,0 6,5 7,0 7,5 8,0 8,5 9,0 9,5 10,0 11,0 12,0 13,0 14,0 16,0 17,0 18,0
Lv – oblong holes of the sieve
Size of the slots width/length ≠ (mm): 1,0 x 20 1,2 x 20 1,4 x 20 1,5 x 0 1,8 x 20 2,0 x 20 2,2 x 20 2,4 x 20 2,5 x 20 2,8 x 20 3,0 x 20 3,2 x 20 3,5 x 20 3,8 x 20 4,0 x 20 4,5 x 20 5,0 x 20 6,0 x 20 7,0 x 20 8,0 x 20
For cleaning small seeds we can provide sieves with holes under 1mm equipped with stainless steel (inox) wire cloth from 0,4mm hole-size.
At your request we provide assistance to choose the right sieves for the seeds you want to clean!
Accessories you can order for the S-800 Seed cleaning machine
Tarpaulin
Side outlet cover
First seed outlet cover
More picture of the S-800 Seed cleaning machine
